NEXO IMPLEMENTATION GUIDLINES
NIS OVERVIEW

NEXO IMPLEMENTATION SPECIFICATION PACKAGE

nexo Implementation Specification Package serve as a guideline and provides implementers all the documentations needed to develop nexo compliant solutions. It describes how a payment acceptance solution should be interacting with an Acquirer Host, a Terminal Management System (TMS) Host or a Sale System using nexo FAST Specification and nexo Protocols.

It includes deliverables (published specifications) for each specification or standard included in the nexo implementation scope :

POI
Terminal Payment Application Specifications

Specifications on how to manage security

ISO 20022
Card Payment Exchange Protocols

Implementation specifications



NIS V4.0 PACKAGE

OVERVIEW

NIS v4.0 provides how to integrate the nexo Specifications and Protocols with a compliant nexo FAST payment application.

NIS v4.0 Package include the following nexo Specifications and Protocols:

  • nexo Functional Scope
  • nexo FAST v3.1 + Bulletins
  • Bulletin 1 - Update on Technology Selection for handling a restart
  • Bulletin 2 - Update on Card Product Selection for handling BIN ranges
  • Bulletin 4 - IF Regulation Updates
  • Bulletin 5 - Pre-Authorisation Service Updates
  • nexo Acquirer v6.0
  • nexo TMS v6.0
  • nexo Retailer v3.1 (optional)
  • nexo Security v2.0



It describes, within the framework of a nexo implementation project, the following:

The functions of the host acquirer interface application (HAP) with detailed description of the messages and data elements when the nexo FAST application has to interact with the nexo Acquirer protocol
An interface application for the terminal management system (TMAP) with detailed description of the messages and data elements used for configuration and maintenance purposes when the nexo FAST application has to interact with the nexo TMS protocol;
The interaction between the sale system and the dedicated interface (SCAP) using the nexo Retailer protocol when it has
to interact with the payment point of interaction (POI).



NIS v4.0 FUNCTIONAL SCOPE

NIS v4.0 main objectives are as follows:

  • To prove that POIs, based on nexo FAST payment application and nexo Acquirer/TMS Systems, work together,
  • To prove the interoperability between all POIs, all Acquirers and TMS providers implementing nexo specifications and protocols


A nexo IS infrastructure is made up of a standalone or an integrated POI system communicating with:

  • one or several Acquirer host(s) to process a card payment transaction,
  • a Terminal Management System host for management functions, e.g. parameter download,
  • a Sale System (optional).



NIS V4 PACKAGE FEATURES & SERVICES



List of Features / Service
FEATURES SUPPORTED IN NIS V4.0
CARD SERVICES
PAYMENT SERVICES
Payment
Refund (partial or total)
Cancellation
Pre-Authorisation (Reservation for nexo Retailer)
Pre-Authorisation
Update Pre-Authorisation
Completion
Deferred Payment
ADDITIONAL FEATURES
Payment with increased Amount
Payment with Cashback
Payment with voice authorisation
CARD MANAGEMENT SERVICES
ISO-4 PIN Format Support
AES DUKPT Support for Data Encipherment
ACCEPTANCE TECHNOLOGIES
Chip with Contact
Magnetic Stripe
Chip/Mobile/Wearable/Contactless
Manual Entry by Acceptor
Stored Card Data (stored by the Acceptor)
CARDHOLDER ENVIRONMENTS
Physical Card
Consumer Device
ACCEPTANCE ENVIRONMENTS
Physical POI
Attended
Unattended
Semiattended
CARDHOLDER VERIFICATION METHODS
EMV Offline Plaintext PIN
EMV Offline Enciphered PIN
Online PIN
Signature
No CVM Required
Offline Mobile Code
CARD AUTHENTICATION METHODS
EMV Offline DDA
EMV Offline CDA
EMV Offline fDDA
EMV Online Authentication
Static Authentication (CSC)
PAYMENT APPLICATION FUNCTIONS
Configuration
Transaction Initialisation
Language Selection
Technology Selection
Selection of the Application
Selection of the Brand / Within the Card
Card Data Retrieval (Token Request)
Card Authentication
Cardholder Verification
Authorisation
Referral
Completion
Reversal
Data Capture
Authorisation
Online
Offline
Batch
Batch Suspended Transaction
ADMINISTRATIVE SERVICES
Reconciliation
Diagnostic
Transaction Advice
DEVICE SERVICES
Print
Display
Sound
Input
SYSTEM SERVICES
Events notifications
Error management
Diagnosis
CARD SCHEMES
MasterCard Contactless
Visa VCPS
Amex ExpressPay
ESTATE MANAGEMENT FUNCTIONS
Service Configuration
Host Configuation
MAC
Retail CBC MAC with Hash
SHA2-256



Download NIS v4.0 Package



IMPLEMENTATION

An implementer of nexo specifications and protocols would require the following:

A POI Implementation

A Vendor implementing a nexo FAST POI terminal has to support

  • A nexo FAST Application, Version 3.1 and Bulletins 1,2,4 and 5;
  • An interface to the Host Acquirer Protocol responsible for handling the nexo Acquirer protocol v6.0;
  • An interface to the Terminal Manager responsible for handling the nexo TMS protocol v6.0;
  • Connections to at least one Acquirer Host in the operational environment. However, the POI shall support a multi acquirer environment;
  • Connection to at least one TMS Host for the purpose of parameters downloads;
  • Cryptographic mechanisms described in nexo Security specification v2.1;
  • Optionally, an interface to the sales system responsible for handling the nexo Retailer protocol v3.1;



AN ACQUIRER IMPLEMENTATION

An acquirer implementing the nexo Acquirer protocol has to support

  • The nexo Acquirer protocol v6.0;
  • The cryptographic mechanisms described in nexo Security specification v2.1;
  • The nexo TMS protocol v6.0, if the acquirer is also the Terminal Manager as well.



A TERMINAL MANAGER IMPLEMENTATION

A Terminal Manager Provider implementing the nexo TMS protocol has to support

  • The nexo TMS protocol v6.0
  • The cryptographic mechanisms described in nexo Security specification v2.1



CRYPTOGRAPHIC MECANISMS & KEY MANAGEMENT

The following cryptographic mechanisms & key management described in nexo Security specification v2.1 has to be supported:

  • DUKPT as key derivation mechanism for PIN Encryption, Card Data Encryption and MAC protection;
  • The Triple-DES algorithm for PIN and Card Data Encryption;
  • Retail-CBC-MAC with SHA-256 for Message Authentication Code (MAC);
  • Key download via TMS protocol is optional. Key download, requires asymmetric cryptography if implemented. If the TMS protocol is not used for key download, then keys are loaded locally in the POI or by other means.



TEST TOOLS / VALIDATION

nexo standards has developed a suite of test tools that allows vendors, acquirers and processors to test the compliance of their payment systems and devices with nexo’s payment acceptance messaging standards and specifications, significantly reducing time to service launch and minimizing unexpected delays during the certification process.

The goal of the standards are to enable fast, interoperable and borderless payment acceptance by “standardising the exchange of payment acceptance data between merchants, acquirers, payment service providers and other payment stakeholders”.



CURRENT TEST TOOLS IS BASED ON NIS V4.0

What is nexo NIS V4.0 Test Solution

  • Test script creation and execution environment for nexo standards adopters
  • Implements official nexo specifications (Acquirer & TMS v6.0, NIS V4.0)
  • Include test plans nexo-IS 4.0
  • Available test solutions:
    - nexo Acquirer test solution
    - nexo POI test solution
  • Based on the black-box testing principle, our solution provides protocol simulators:
    - nexo Acquirer protocol
    - nexo TMS protocol
    - nexo Retailer protocol



Support for all phases of your testing project

Test creation

  • Create test cases within the tool using the features of the GUI. User defines what they expect to happen, select Data to be used, define additional validations if required.

Test case management*

  • Create and manage test cases within the tool, organize them into libraries and build regression or certification test sets that ensure reproducibility and stability of test quality.*

Test execution & verdict

  • Execute tests right from your test case library. Tool generates test messages and responses as defined in the test cases, and makes a test verdict automatically

Automatic payment validation

  • Verify system processing, fully automatically, both against format specification and custom, user-built validations

Detailed logging and flexible reporting

  • Analyse test results and troubleshoot your system thanks to detailed logs. Generate report of your test campaign thanks to a flexible GUI



Testing against nexo standards specifications

  • Powerful message engine implements all rules of the network
  • Simulator always up-to-date with maintenance
  • Build correct and incorrect messages towards the system under test
  • Default format validation uses Specification and (if applicable) XSD validation rules to provide detailed information on any errors
  • Automated validation of the received message
    – Message structure (e.g. Correct fields, order of fields)
    – Check for mandatory and optional fields
    – Check conditional fields
    – Check each field against format
    – Value sets validation
  • Report all detected errors in a friendly manner to help resolve the issue



Benefits



NEXO ACQUIRER TEST SOLUTION

Features

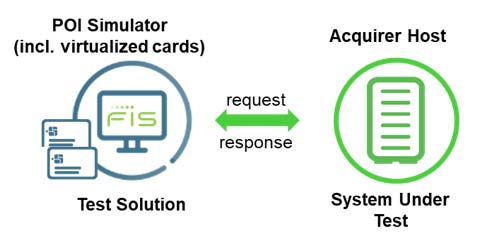

  • Simulates POI to put Acquirer Host under test
  • Implements test cases of nexo-IS 4.0 test plan
  • Qualified by nexo Standards

  • Dedicated for acquirers and acquirer system providers
  • Accredited in June 2019
  • A set of 120 test scripts implemented (representing 200 test cases in the nexo IS V4.0 Acquirer test plan)
  • All Acquirer test scripts are included in the Acquirer test tool library

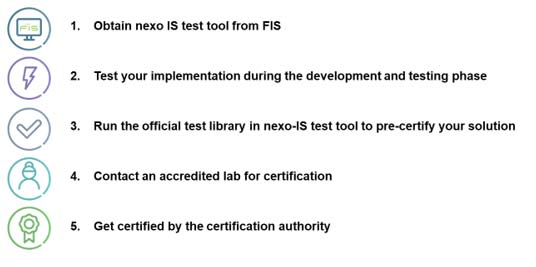

Steps to Acquirer Host / POI certification

  1. Obtain nexo IS test Tool from nexo standards
  2. Test your implementation during the development and testing phase
  3. Run the official test library in nexo-ISD test tool to pre-certify or validate your solution
  4. Contact an accredited lab for certification
  5. Get certified by the certification authority

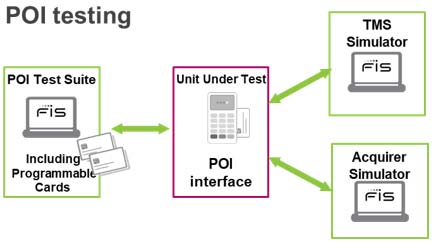

POI TEST SOLUTION

  • Dedicated for POI application developers and vendors
  • Accredited in June 2020
  • A set of 626 test scripts implemented (representing around 950 test cases in nexo IS V4.0 POI test plan) of which:
    • 171 are mandatory
    • 140 are required for French and German markets
    • 7 are for unattended only
    • 18 are for combined readers
    • 290 are for optional services and features that could be selected in the Vendor’s POI ICS
  • All POI test scripts are included in the POI test tool library
  • All test cases are included in tool
  • Applicable test cases for each POI under test defined by filling in the Implementation Conformance Statement file (ICS)
  • The content and layout of the file is defined by nexo
  • The tool allows
    - loading ICS file to select applicable test cases
    - defining ICS by filling in a questionnaire
  • Based on content of ICS, test cases are disabled/enabled for execution



CERTIFICATION FRAMEWORK

Nexo standards and CFCF (the Common Functional Certification Framework) have signed a Liaison agreement to cooperate in order to provide for the certification of products having implemented nexo specifications

The CFCF certification infrastructure enables a test and certification process of nexo solutions. The governance of the certification process runs by the members of the CFCF. The test and certification process is based on the principle of consensus-based decisions between the members of the CFCF who would like to base their approvals on the CFCF certification process using nexo implementation specifications. The certification infrastructure shall be maintained and enhanced in order to make it available as a general service to interested Approval Bodies. CFCF defined its certification policy in a dedicated documentation which can be found under http://www.cfcf.eu/certification-process/.

The CFCF Certification process covers the functional Test and Certification Policy applicable to POI and acquirer systems developed following the nexo Implementation Specification developed and maintained by nexo standards

The CFCF infrastructure involves :

  • Certification Applicants (Vendors),
  • Test Laboratories
  • Certification Bodies and
  • The Certification Committee

These parties roles are based on the usage of the nexo Implementation Specification, the nexo Test Specification as well as on the test methodology and the administrative process agreed within CFCF. The Certification Bodies produce Certificates, which will be used by the Approval Bodies as part of Type Approval. Based on the common specification, the common test specification, a common test methodology and common certification processes, the CFCF certification infrastructure provides for a “one-stop-shopping” for all nexo compliant solutions. A certificate based on one single test report can be used by Approval Bodies as part of Type Approval.



CERTIFICATION PROCESS

NIS V5.0 PACKAGE

OVERVIEW

NIS v5.0 provides how to integrate the nexo Specifications and Protocols with a compliant nexo FAST payment application.

It is based on the following Specifications & Protocols:

SPECIFICATIONS

  • NIS V5.0 implementation specifications
  • NIS V5.0 functional scope
  • nexo FAST V3.3
  • nexo Security v3.0

MUG'S

  • nexo Acquirer V9.0
  • nexo Retailer v5.0
  • nexo TMS V9.0

MESSAGES

  • nexo Acquirer - Card Payments Exchanges - Acceptor to Acquirer V9.0
  • nexo TMS - Card Payments Exchanges - Terminal Management V9.0
  • Nexo Retailer – Retailer Protocol - Sale to POI Card Transactions v2.0



It describes, within the framework of a nexo implementation project, the following:

The functions of the host acquirer interface application (HAP) with detailed description of the messages and data elements when the nexo FAST application has to interact with the nexo Acquirer protocol
An interface application for the terminal management system (TMAP) with detailed description of the messages and data elements used for configuration and maintenance purposes when the nexo FAST application has to interact with the nexo TMS protocol;
The interaction between the sale system and the dedicated interface (SCAP) using the nexo Retailer protocol when it has
to interact with the payment point of interaction (POI).



NIS V5.0 FUNCTIONAL SCOPE

A nexo IS infrastructure is made up of a standalone or an integrated POI system communicating with:

  • one or several Acquirer host(s) to process a card payment transaction,
  • a Terminal Management System host for management functions, e.g. parameter download,
  • a Sale System (optional).



A nexo FAST application,

  • A nexo FAST application,
  • An interface to the Host Acquirer Protocol responsible for handling the nexo Acquirer protocol
  • An interface to the Terminal Manager responsible for handling the TMS protocol,
  • Connections to at least one Acquirer host in the operational environment. However, the POI shall support a multi acquirer for the POI test and certification environment. The multi acquirer functionality is in scope of the nexo IS test requirements,
  • Connection to one TMS host for at least the purpose of nexo IS parameters download,
  • Cryptographic mechanisms described in NIS v5 Functional Scope
  • Optionally, an interface to the sale system responsible for handling the nexo Retailer protocol,

An acquirer implementing the nexo IS specification has to support (with limitations described below):

  • The nexo Acquirer protocol,
  • The cryptographic mechanisms described below,
  • The nexo TMS protocol if the acquirer is the Terminal Manager as well.

A Terminal Manager implementing the nexo IS specification has to support (with limitations described below):

  • The nexo TMS protocol
  • The cryptographic mechanisms described in NIS v5 Functional Scope



NIS V5 SERVICES & FEATURES

List of Features / Services
Elements in bold are new features in NIS v5.0
FEATURES SUPPORTED
CARD SERVICES
PAYMENT SERVICES
Payment
Refund (partial or total)
Cancellation
Pre-Authorisation (Reservation for nexo Retailer)
Pre-Authorisation
Update Pre-Authorisation
Completion
Deferred Payment
No-Show
Instalment Payment
Acquirer  Instalment
Recurring Payment
Quasi-Cash
CASH SERVICES
Cash-Advance (Attended)
CARD INQUIRY SERVICES
Card Validity Check
CARD ELECTRONIC TRANSFER
Original Credit
Card Present
ADDITIONAL FEATURES
Payment with increased Amount
Payment with Cashback
Payment with voice authorisation
Dynamic Currency Conversion (DCC Acceptor)
CARD MANAGEMENT SERVICES
ISO-4 PIN Format Support
AES DUKPT Support for Data Encipherment
ACCEPTANCE TECHNOLOGIES
Chip with Contact
Magnetic Stripe
Chip/Mobile/Wearable/Contactless
Manual Entry by Acceptor
Stored Card Data (stored by the Acceptor)
CARDHOLDER ENVIRONMENTS
Physical Card
Consumer Device
ACCEPTANCE ENVIRONMENTS
Physical POI
Attended
Unattended
Semiattended
CARDHOLDER VERIFICATION METHODS
EMV Offline Plaintext PIN
EMV Offline Enciphered PIN
Online PIN
Signature
No CVM Required
Offline Mobile Code
CARD AUTHENTICATION METHODS
EMV Offline DDA
EMV Offline CDA
EMV Offline fDDA
EMV Online Authentication
Static Authentication (CSC)
PAYMENT APPLICATION FUNCTIONS
Configuration
Transaction Initialisation
Language Selection
Technology Selection
Selection of the Application
Selection of the Brand / Within the Card
Card Data Retrieval (Token Request)
Card Authentication
Cardholder Verification
Authorisation
Referral
Completion
Reversal
Data Capture
Authorisation
Online
Offline
Batch
Batch Suspended Transaction
ADMINISTRATIVE SERVICES
Reconciliation
Diagnostic
Transaction Advice
DEVICE SERVICES
Print
Display
Sound
Input
SYSTEM SERVICES
Events notifications
Error management
Diagnosis
CARD SCHEMES
MasterCard Contactless
Visa VCPS
Amex ExpressPay
JCB - J/Speedy
Discover - D-PAS
UnionPay - QuickPass
girocard
CPACE
ESTATE MANAGEMENT FUNCTIONS
Service Configuration
Host Configuation
KEY MANAGEMENT
AES DUKPT
128
ENCRYPTION
AES
128 bits KeyLength CBC
MAC
Retail CBC MAC with Hash
SHA2-256
CMAC AES
AES128
x* = MOTO in nexo FAST



Download NIS v5.0 Package
